Call 01983 303322 or drop into our shop to try this Oxygen 2023 S-Cross CB MK2 for size.

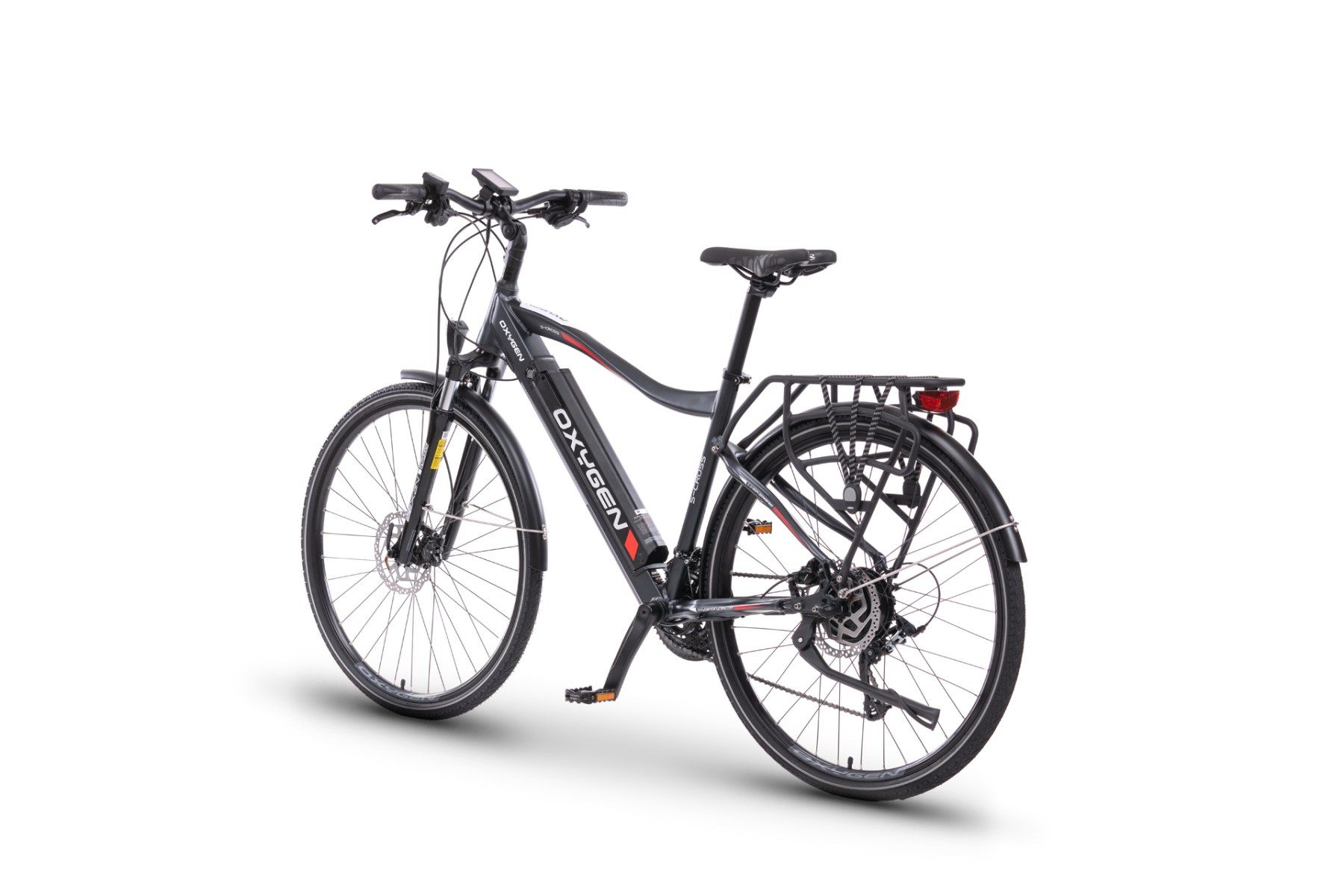

Oxygen 2023 S-Cross CB MK2

New
Year: 2023

£1,775.00

Electric bikes
Commuter bikes
Hybrid bikes

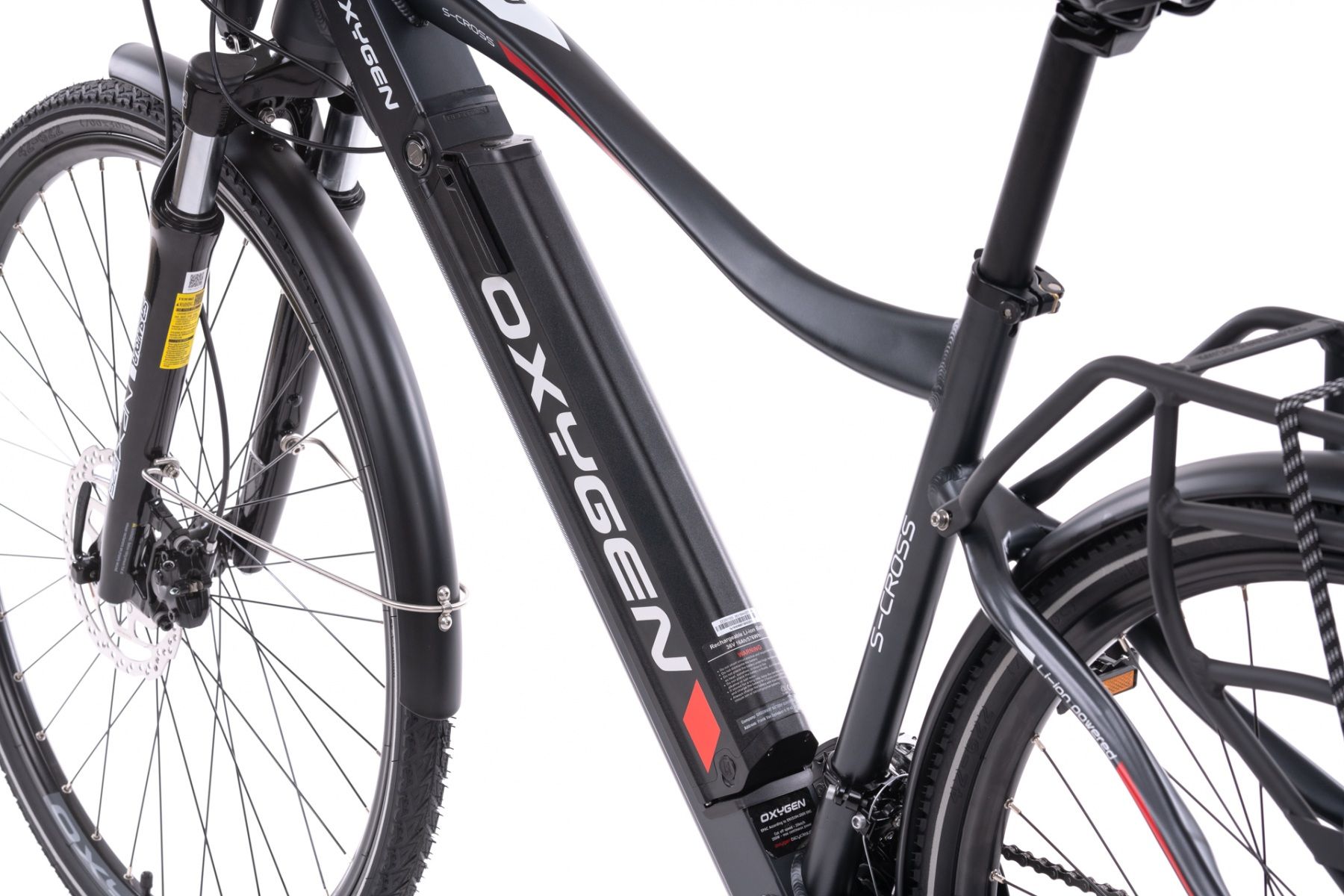

The S-Cross CB Commuter/trekking bike has been designed with a discrete in frame 36v battery which comes with the option of 3 battery sizes (10.4ah, 13ah or 16ah), a new centrally mounted backlit LCD display with 6 power assist levels and the further option of 3 power modes, a handlebar mounted USB port for charging mobile devices from the bikes battery, a powerful 250w motor, 24 speed Microshift gearing, Shimano disc brakes, front and rear mudguards, pannier rack, front and rear lights.

LCD CONSOLE

The S-Cross CB MKII features a new easy to read centrally mounted LCD Backlit display with a handlebar mounted USB port to charge your devices while on the move.

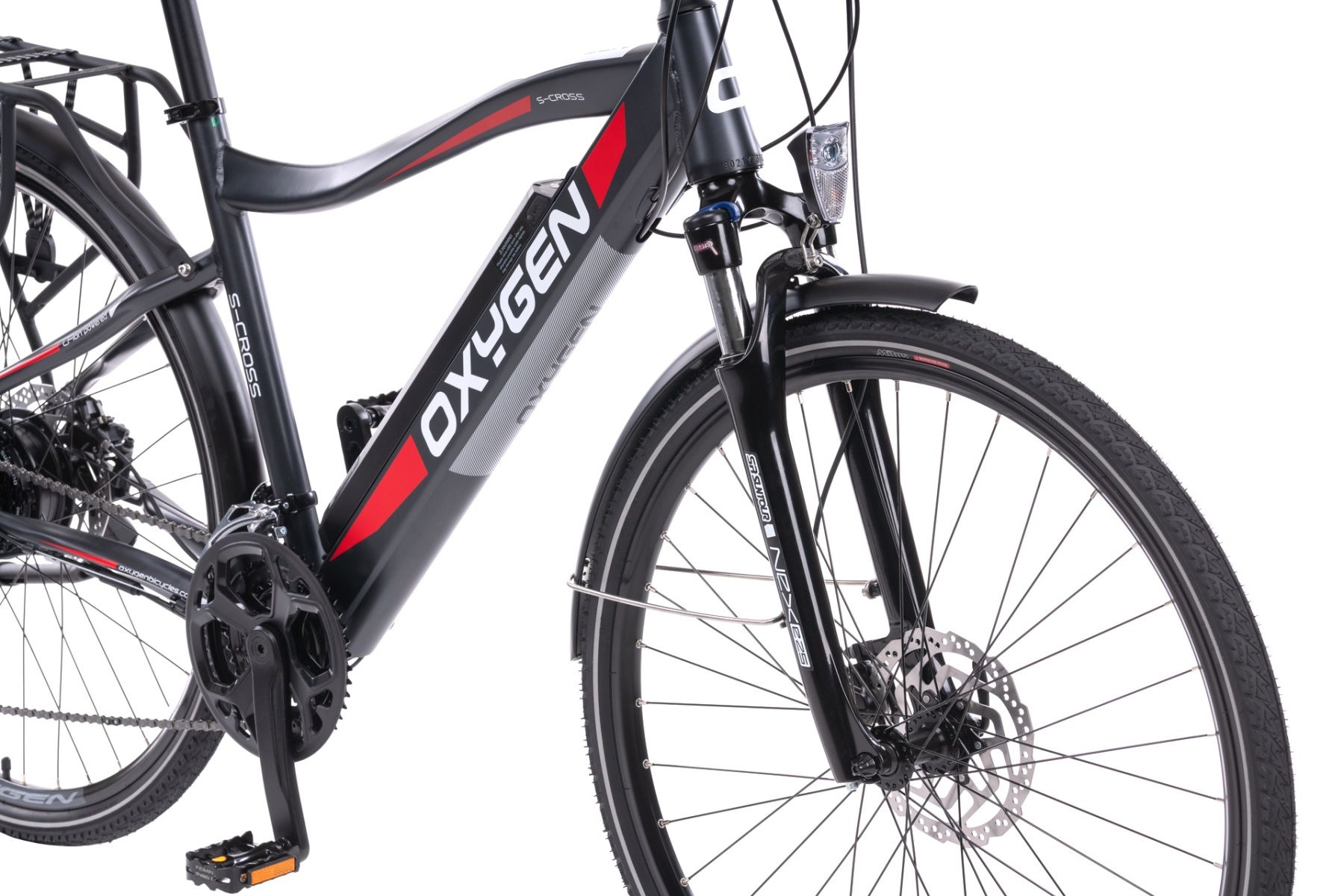

ALPHA ALLOY FRAME

Alpha 6061 T4/T6 is the frame technology which delivers the superlight and rigid frames for our Oxygen Electric Bikes.

All of our frames are made of alloy mix containing a mix of aluminium 6061 and magnesium. The 6061 alloy delivers a super lightweight frame with maximum strength which is crucial to achieve reliability. Additionally every frame is hand welded to ensure the highest quality.

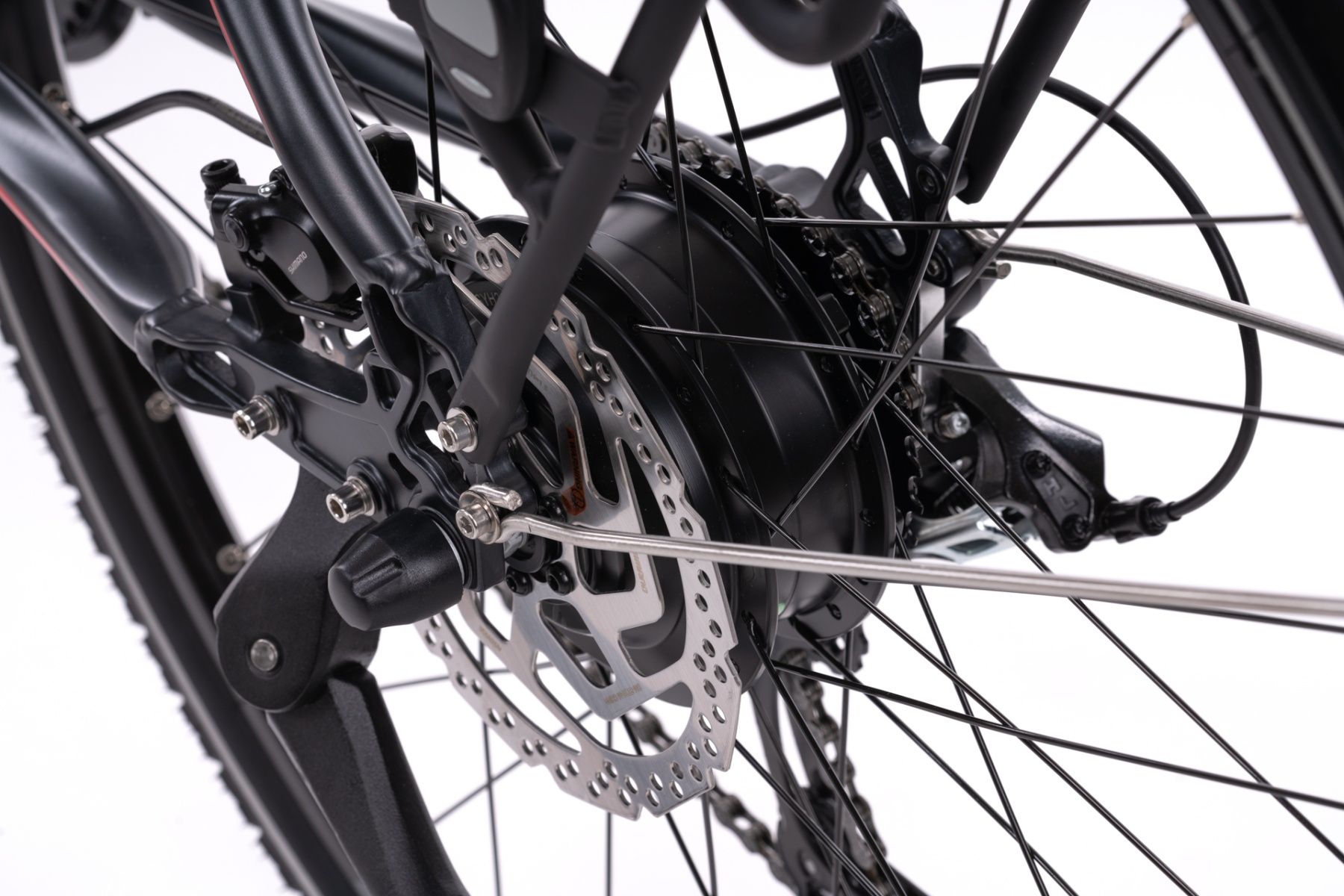

HIGH TORQUE REAR MOTOR

The S-Cross CB MKII uses a powerful 250W High torque motor for smooth, reliable power delivery and great hill climbing ability.

Full Specifications

FRAMESET

Size 19″
Frame AI 6061 T4&T6
Front Suspension SR Suntour NEX NLO DS 700C

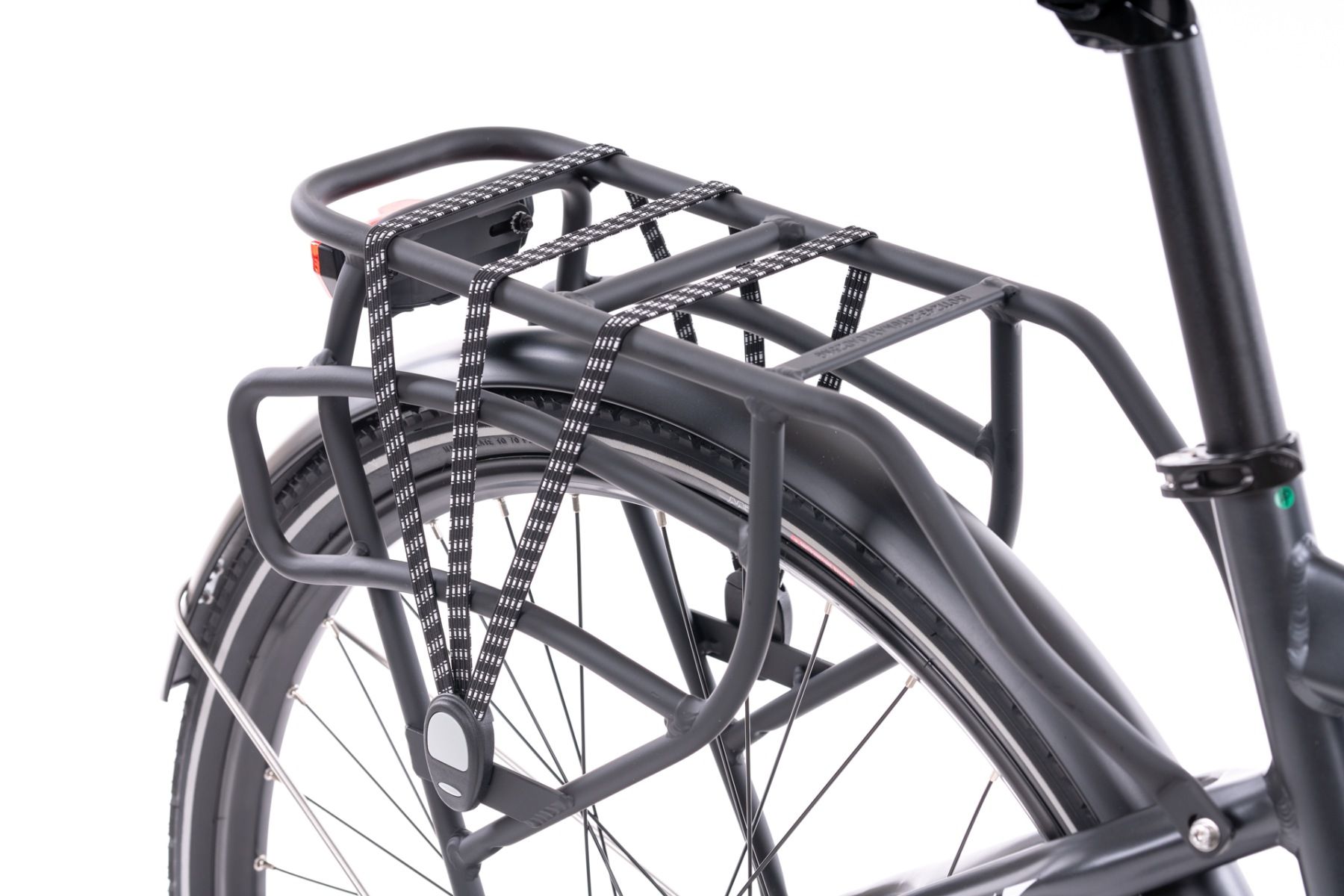

Rear Rack Super Carrier – Alloy 25kg



ELECTRIC DRIVE

Motor 36V 250W Shengyi DGWH2C
Battery 36v 10.4ah / 36v 13ah / 36v 16ah LG Cells
Controller OXYGEN Cloud Drive
Throttle NOT SUPPORTED
Pedal Assist Variable assist level (0-6)
Charger Anglie 42V 2A

PERFORMANCE

Range 10.4ah: Up to 30 miles
13ah: Up to 50 miles
16ah: Up to 70 miles
Max Speed 15.4mph dependent on terrain
Max Power 250W (peak 576W)
Weight 26.4Kg inc Battery
Max Payload 120Kg + 25kg luggage

WHEELS

Rims OXYGEN – Remerx 622X19 BA+SEE, 36H, AV
Spokes 14G – 2 / 270 – 310
Hubs Shimano HB-TX505
Tyres Mitas Sepia 42-622

DRIVETRAIN

Shifter Microshift TS38-8 – 8 SPEED
Microshift TS-38 – 3 SPEED
Rear Derailleur Microshift RD-M36L – 8 SPEED
Chain KMC 1/2″ x 3/32″
Crank Prowheel TY-CN02 28-48T
Cassette Shimano CS-HG200-8
Pedals Feimin FP-958

COMPONENTS

Saddle Selle Royal
Seat Post Lightweight Alloy 30.9mm
Handlebars A-One Riser 31.8mm 640mm
Stem Promax 105mm adjustable
Headset Promax integrated
Brakes Shimano Hydraulic Brakes
